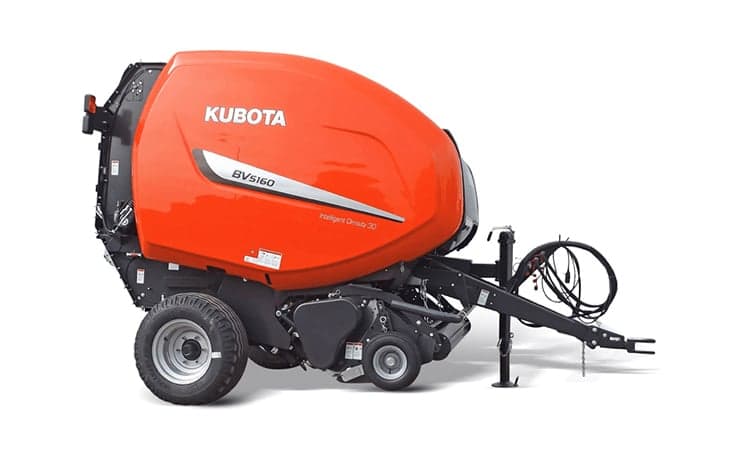

BV5160
BALERS
MSRP AS LOW AS
$0.00
The Kubota BV5160 SC-14 series of balers are fully ISO ready and come standard with a 14 knife cutting system. These balers have been designed with silage in mind, but can handle all types of crops and conditions. The unique bale chamber design ensures the least amount of air in your silage bales, which increases your silage quality and bale density!
Special Offers
Stand Alone Financing Installment Program
Implement Stand Alone Financing
Customer instant rebate for Farmer Veteran Coalition members.
Farmer Veteran Coalition Rebate
Up to 0% A.P.R. for 48 Months plus $2,500 Loyalty Cash* on your new Kubota BV Series!
BALER SERIES
Specifications
1 1/4" Main Drive Chain
1 Main Chain
Bale Formation
Bale Height In.
Bale Ramp
Bale Width In.
Binding
Cam Clutch Protection
Diameter Max In.
Diameter Min In.
Endless Belts
Flare To Flare Pickup
Focus Terminal
Fork Feeder
Height In.
Hydraulic Outlets
I S O B U S
Iso Match Tellus
Length In.
Lift
Minimum P T O Horsepower Required H P/ K W
Monitor
Number Of Tine Rows
P T O Protection
P T O Rpm
Pickup Protection
Pneumatic Gauge Wheel
Protection, Cam Clutch
Shear Bolt Protection
Single Knife Protection
Super Cut-14 Knives
Tine Spacing In.
Twine
Unblocking System
Weight Lbs. (kg)
Wheels And Axles | 11.5/80-15
Wheels And Axles | 15.0/55-17
Wheels And Axles | 19.0/45-17
Wheels And Axles | 500/45-22.5
Wide Angle P T O Shaft
Width In.
Windguard
Working Width In.
1 1/4" Main Drive Chain
Standard
1 Main Chain
1.25"
Bale Formation
5 Belts + 3 Rollers
Bale Height In.
60"
Bale Ramp
Standard
Bale Width In.
47"
Binding
Net / Twine
Cam Clutch Protection
Standard
Diameter Max In.
65"
Diameter Min In.
24"
Endless Belts
Standard
Flare To Flare Pickup
86"
Focus Terminal
Standard
Fork Feeder
N/A
Height In.
106"
Hydraulic Outlets
1SA + 1DA
I S O B U S
Standard
Iso Match Tellus
NA / Standard
Length In.
176"
Lift
Hydraulic
Minimum P T O Horsepower Required H P/ K W
75
Monitor
TellusGO
Number Of Tine Rows
5
P T O Protection
CamClutch
P T O Rpm
540CV
Pickup Protection
Radial Clutch
Pneumatic Gauge Wheel
Standard
Protection, Cam Clutch
N/A
Shear Bolt Protection
N/A
Single Knife Protection
Standard
Super Cut-14 Knives
Standard
Tine Spacing In.
2.36"
Twine
Double Arm
Unblocking System
Hydraulic Drop floor
Weight Lbs. (kg)
7165
Wheels And Axles | 11.5/80-15
N/A
Wheels And Axles | 15.0/55-17
Standard
Wheels And Axles | 19.0/45-17
Optional
Wheels And Axles | 500/45-22.5
Optional
Wide Angle P T O Shaft
Standard
Width In.
99"
Windguard
Roller wind guard
Working Width In.
86"
